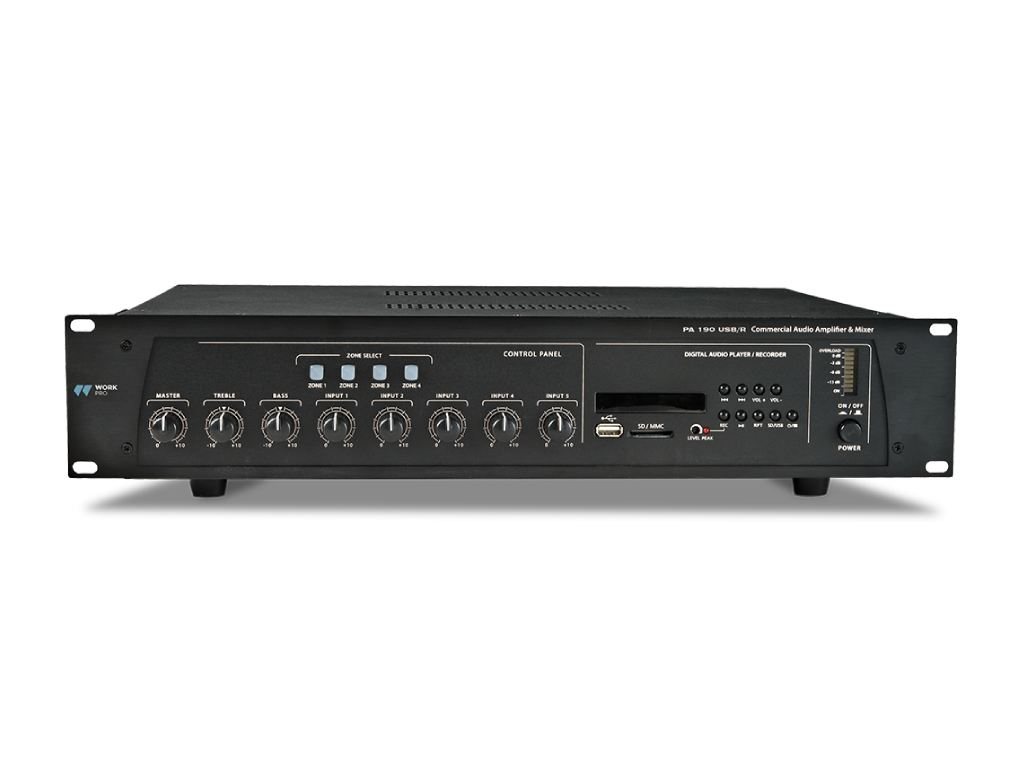

PA 190 USB / R is a 180 W installation amplifier that includes a USB / SD media player / recorder. It incorporates a 5-input mixer for audio control with independent volume control, Master level control and bass / treble tones, and it is possible to select 4 different audience zones. It incorporates a pre-out terminal to send the mixed signal to an external amplification system or for connecting external devices such as equalizers or processors. It has a 1 W monitor output that allows you to connect a speaker for monitoring purposes. In addition, for maximum safety, it includes a warning on / off switch and a TEL / Emer connection for emergency announcements.
- 2 19-inch rack units.
- USB / SD / MMC recorder / player.
- 4 selectable audience zones.
- Telephone / emergency connection.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | Low impedance (4/8/16 Ohm), Line 25/70/100 V |
| Power | 180 W |
| Input Sensitivity | Mic: 2.7 mV balanced, Line: 300 mV |
| Input Impedance | Mic: 600 Ohm, Line: 56 KOhm |

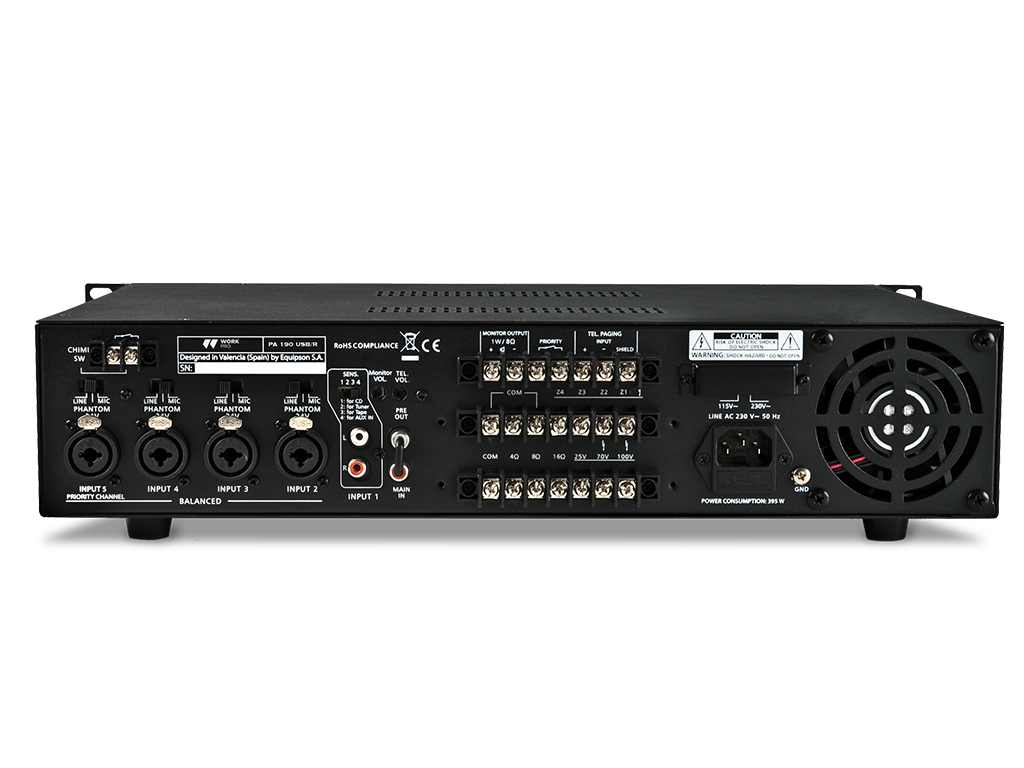

| Connectors | Mic: 4 x XLR3 / 1/4 "Jack, Line: 1 x RCA pair, Phone / Priority / monitor: terminals, Amp out: terminals |
| Controls | Independent volume for each input channel, Master volume, Tone control (treble / bass), Audience zone selector, Player recorder control. |
| Frequency Response | 30 Hz - 20 KHz |
| THD+N | < 0.5% @ 1 KHz |
| S/N ratio | > 80 dB (lÃnea), > 60 dB (mic) |
| Phantom Power | +24 V |
| Other functions | Selection of audience zones, recorder / player, 4 chime tones, telephone / emergency connection |
| Power supply | 115/230 V AC - 50/50 Hz. 24V - 4A |
| Consumption | 395 W |
| Dimensions | 483 x 88 x 355 mm |
| Weight | 11.6 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.36 | 0.48 | 0.09 | 11.60 |
| Box | 0.56 | 0.46 | 0.19 | 13.84 |
