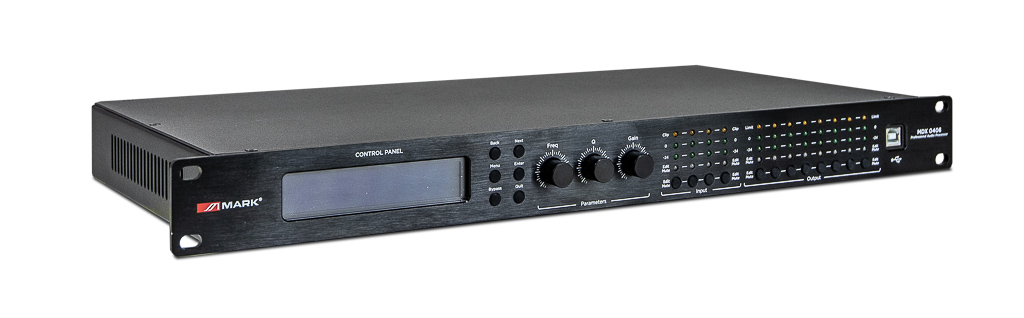

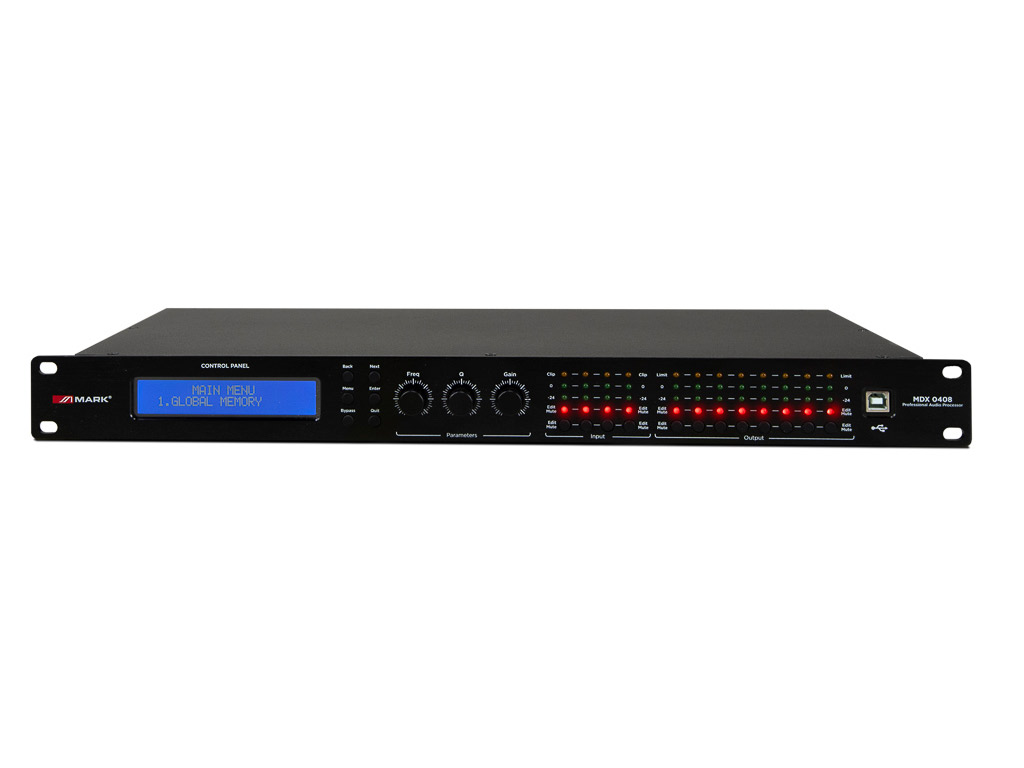

MDX 0408 is a professional audio processors that can realize a variety of DSP functions. It integrates compressors, limiters, frequency dividers, dynamic EQ, delayers, equalizers, input and output with FIR phase correction, and audio mixers. The matrix can be quickly debugged and monitored through the beautiful and intuitive software, which provides a broad operating space for the construction and operation of professional audio amplification systems. MDX 0408 can manage 4 inputs to 8 outputs.
The MDX 04208's applications make it ideal for managing the audio of venues such as stadiums, professional performance, auditoriums, multifunctional halls, conference systems, etc.
- Control via Ethernet, USB and RS232.
- DSP 24 bit
- 96 kHz / 24 bit sampling (*FIR @ 48 kHz).
- Control Software MarkDSP.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.

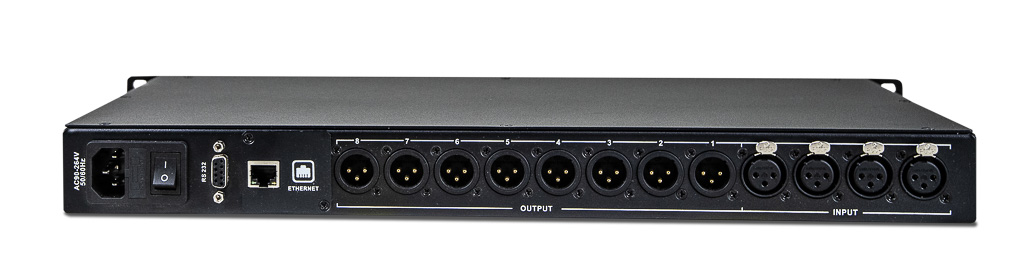

| Audio input | 4 XLR3 balanceadas/ 4 XLR3 balanced |
| Processing per input channel | Noise Gate, PEQ_X IN, DEQ IN, Delay, FIR IN, Matriz, Phase, Mute |
| Audio Output | 8 XLR3 balanceadas/ 8 XLR3 balanced |
| Output channel processing | FIR OUT, PEQ_X OUT, Compressor, Limiter |
| S/N ratio | 108 dB @ 16 dBu, 1 kHz, A-wt/Line |
| THD+N | -90 dB @ 0 dBu, 1 kHz, A-wt/Line |
| Sampling frecuency | 96 kHz / 24 bit |
| Control protocols | USB, RS232 and TCP/IP |
| Network Ports | D-SUB9 and Ethernet |
| Power supply | AC 90/264 V 50/60 Hz |
| Dimensions | 483 mm x 215 mm x 44.5 mm |
| Weight | 3.2 Kg |
| Functions | Signal matrix, Crossover, IN/OUT filters, Polarity inversion, Noise Gate, Compressor, Delay |
| Control software | Control Software MarkDSP |
